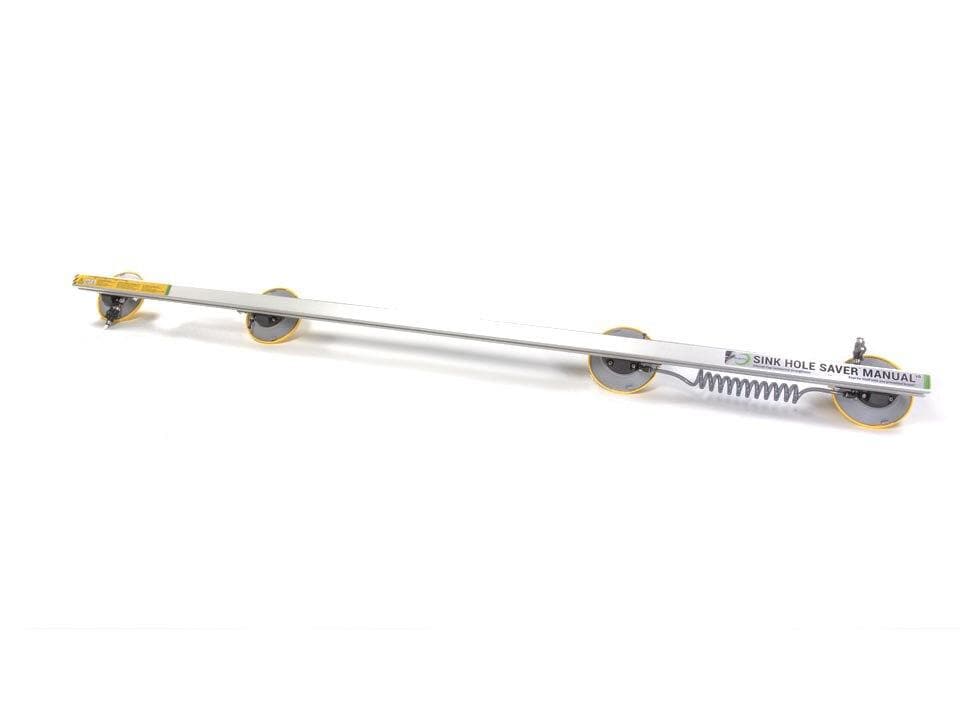

The Sink Hole Saver™ Manual v6 is a surface-mounted reinforcement system that strengthens fragile materials during lifting, transportation, and installation.



MATERIAL REINFORCEMENT REIMAGINED

The Sink Hole Saver™ Manual v6 is a surface-mounted reinforcement system that strengthens fragile materials during lifting, transportation, and installation. This product features proprietary, non-marking concaved vacuum cups with triple sealing rings for a strong, reliable hold—even on textured and leathered surfaces. The vacuum cups can be re-pumped in place without loss of remaining suction, and red-collar indicators on thumb pumps allow vacuum pressure to be monitored at a glance. The six fluted knobs allow quick repositioning of cups around cutouts.

The Sink Hole Saver™ Manual models are equipped with all fittings to easily become Auto models with the purchase of a VMP 750.

• Pays for itself with one prevented break!™
• Surface-mounted reinforcement system for fragile materials
• Perfect solution for thin materials, curved countertops, vertical panels, and high-low drops
• Non-marking 6" cups feature a concave design for quick attachment, even to bowed surfaces
• FTS™ (flexible triple seal) vacuum cups provide secure, reliable hold on textured or leathered materials
• Re-pumpable cups, without remaining pressure loss
• Easy to read vacuum pressure indicators
• High flow vacuum release valves for fast and hassle-free removal of product

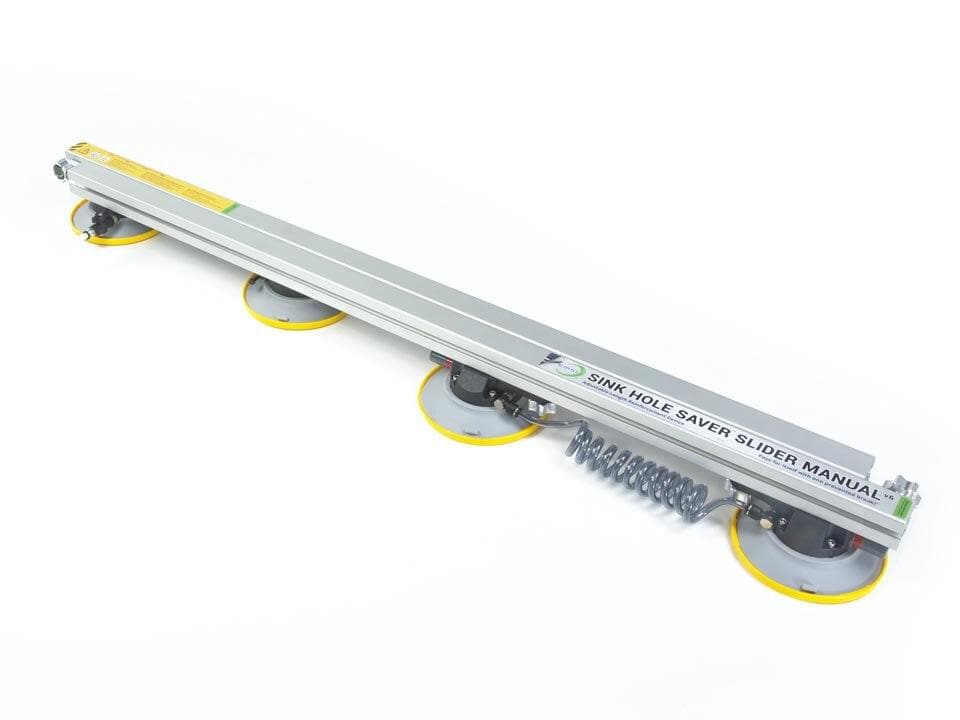

• Quickly extend or collapse to completely support fragile materials (applicable to the Sink Hole Saver™ Slider Manual)
• Available sizes:
  • Sink Hole Saver™ Manual: 4' and 7'
  • Sink Hole Saver™ Slider Manual: Extension Range: 51" - 90" (1.3 m - 2.28 m)

ACCESSORIES

• The Sink Hole Saver™ Rigid Cross-Brace Kit (part # RCB-S4-19) attaches perpendicular to any two Omni Cubed® vacuum cup Sink Hole Savers to minimize flexing and twisting of large and fragile materials.
• The Sink Hole Saver™ Angle Bracket (part # AB-SHS) connects two Sink Hole Savers to create a rigid joint at any angle up to 270° for safe transportation of uniquely shaped countertops.
• The Sink Hole Saver™ Extension Bracket Kit (part # ESB-19) combines two Sink Hole Saver™ Manuals or Autos into one adjustable-length rail for greater versatility and convenience.
• The Sink Hole Saver™ Vertical Lifting Handle Kit (part # VLH-19) attaches to vacuum cup Sink Hole Savers to make vertical panel installations safer, faster, and easier.
• The Sink Hole Saver™ Horizontal Lifting Handle Kit (part # HLH-19) provides a comfortable gripping point beyond both ends of any one Sink Hole Saver™ rail or Rigid Cross-Brace bar.
• The Rigid Cross-Brace Clamp Kit (part # RCBC-2-19), with one or more Rigid Cross Brace Kits, connects additional rails to your Omni Cubed® vacuum cup Sink Hole Savers or Slim Slab Savers. This clamp kit can also be used as a replacement for lost or broken clamps.

Product Name	Sink Hole Saver™ Manual v6
Part #	SHS-4M-20, SHS-7M-20,
MSRP	4' Sink Hole Saver™ Manual v6: $275.00 7' Sink Hole Saver™ Manual v6: $475.00
Patent	Applicable Patents
Product Dimensions	4' Sink Hole Saver™ Manual v6: 48" x 5" x 6.5" 7' Sink Hole Saver™ Manual v6: 84" x 5" x 6"
Product Weight	4' Sink Hole Saver™ Manual v6: 6.4 lb 7' Sink Hole Saver™ Manual v6: 11.7 lb
Package Dimensions	4' Sink Hole Saver™ Manual v6: 48" x 5" x 6.5" 7' Sink Hole Saver™ Manual v6: 84" x 5" x 6.5"
Shipping Weight	4' Sink Hole Saver™ Manual v6: 8 lb 7' Sink Hole Saver™ Manual v6: 13 lb
Includes	One rail, 6" vacuum cups with covers (2 vacuum cups for the 4'; 4 vacuum cups for the 7')
Rated Capacity	70 lb (31 kg) per cup; 200 lb (90 kg) per rail
Materials	Aluminum, reinforced polymer, stainless steel, silicone, zinc plated steel
