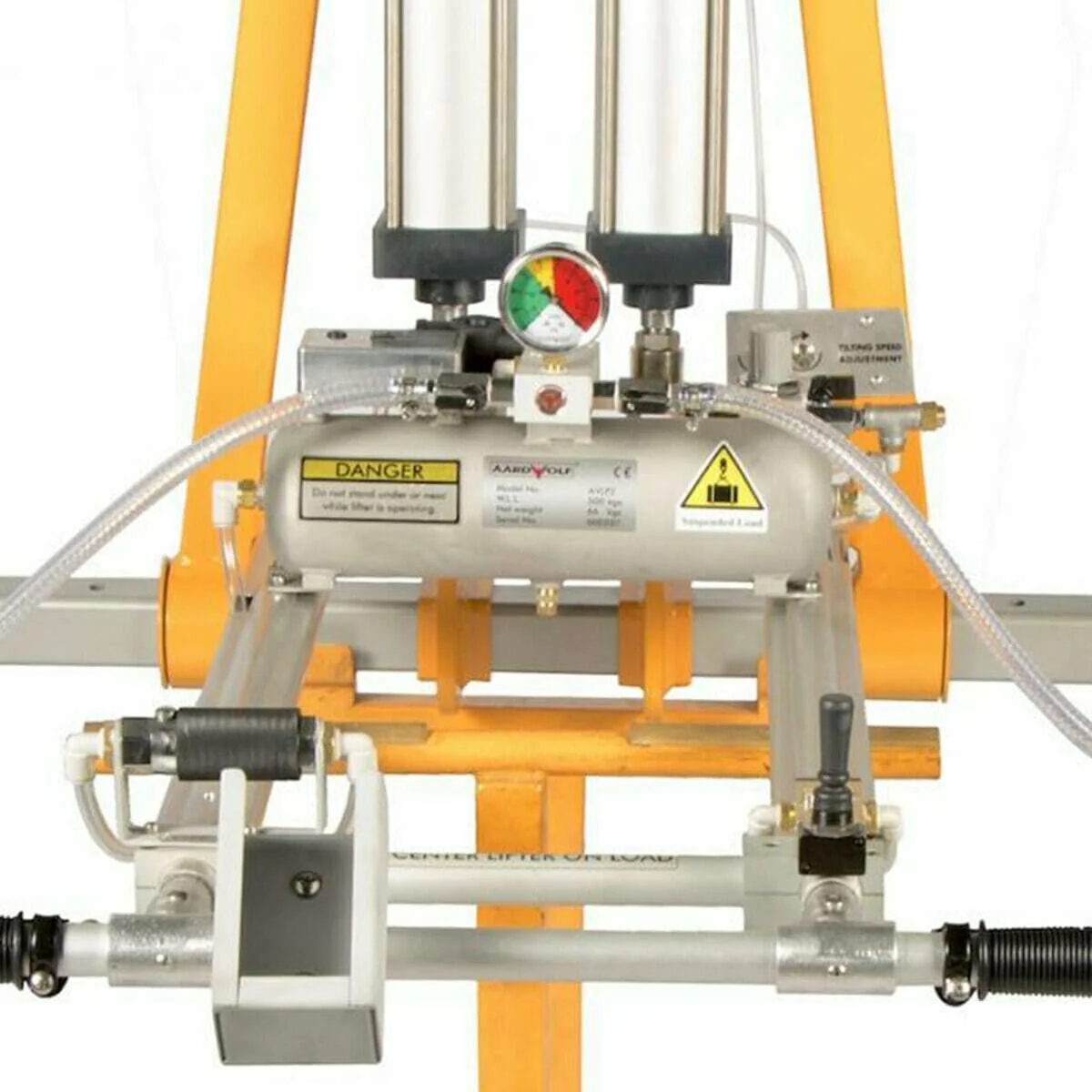

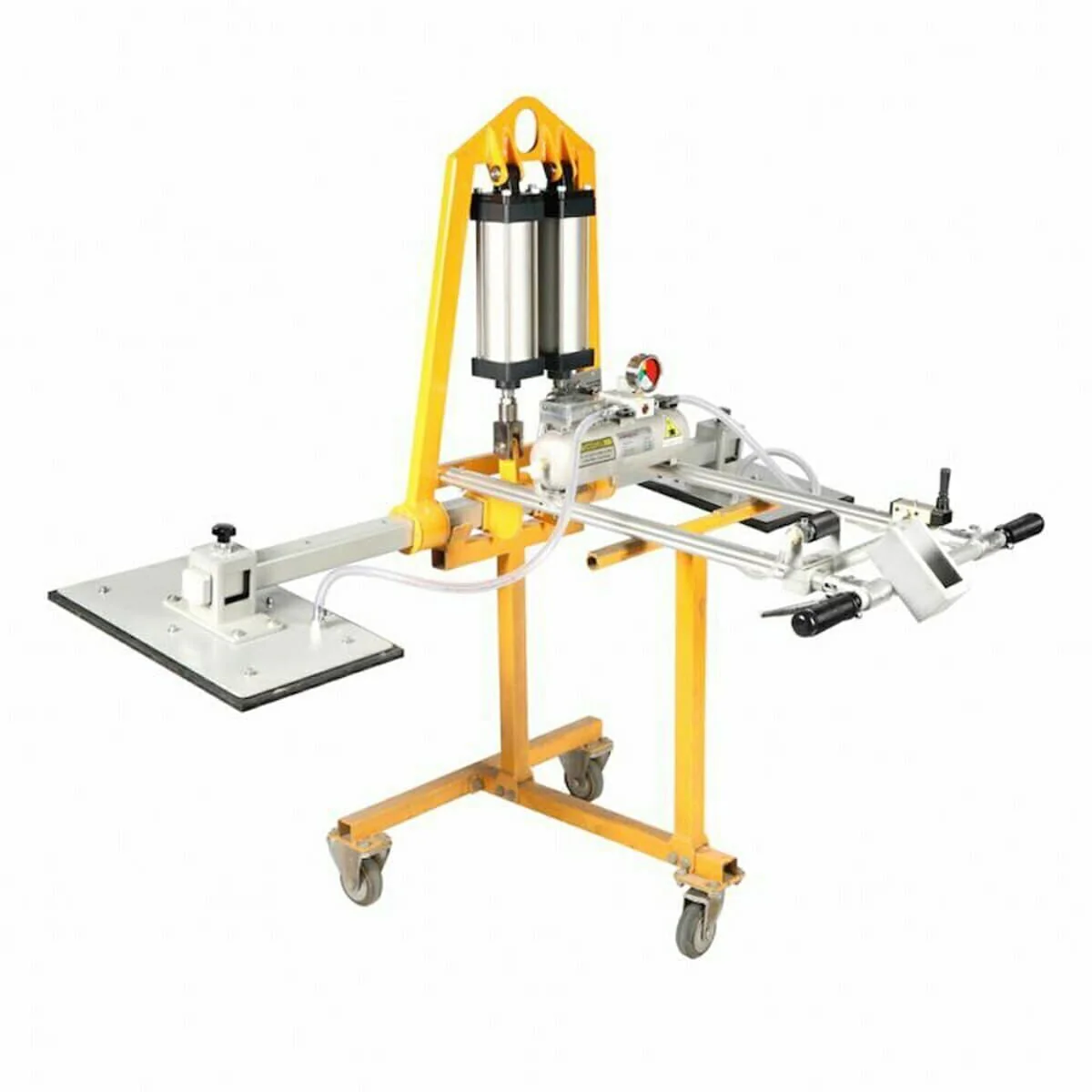

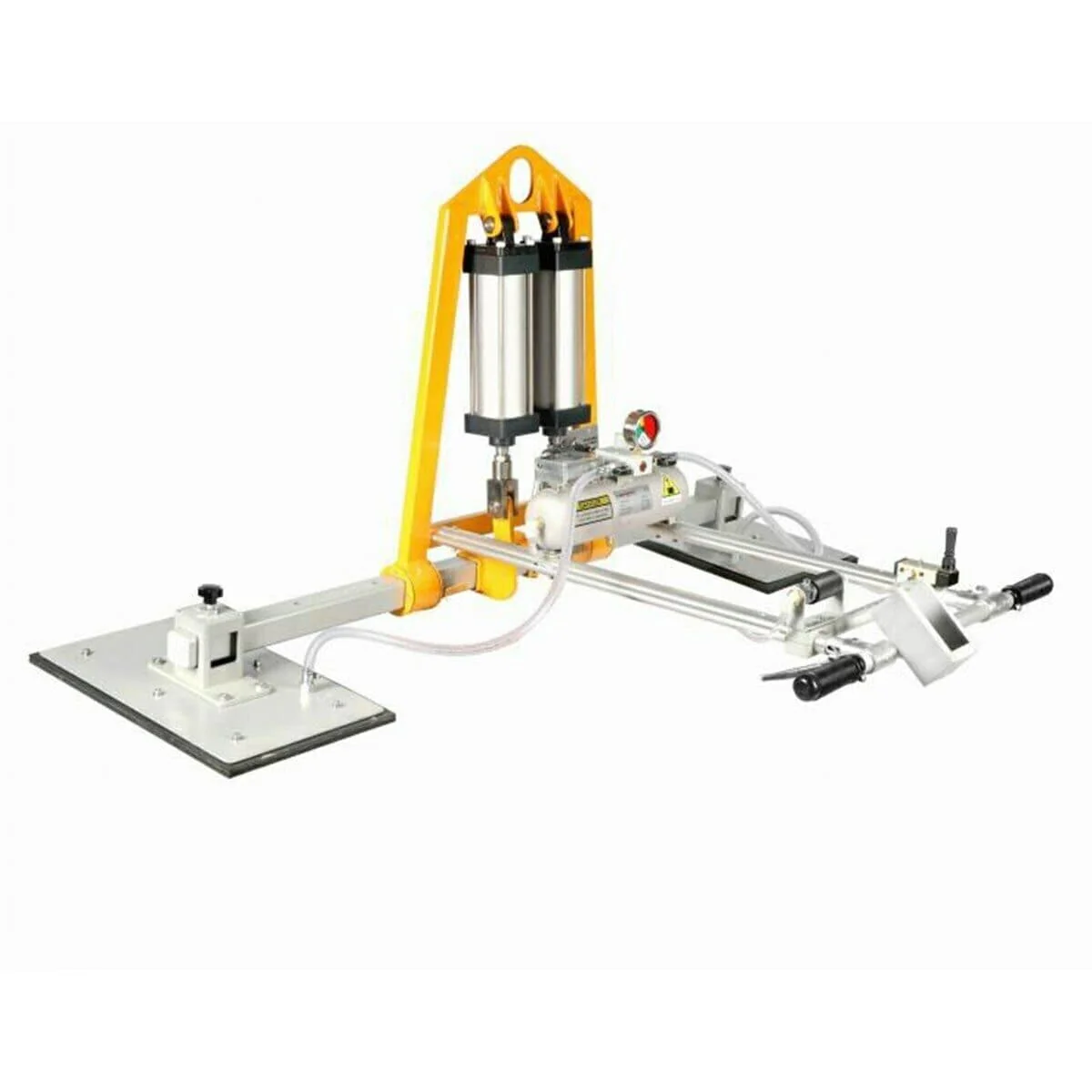

This vacuum lifter is designed to lift smooth or rough marble and granite slabs.

Featuring rugged construction with the ability to lift and tilt materials. Powered by compressed air.

Features

• Pneumatic vertical-horizontal tilting from 0 to 90° by a pneumatic piston.
• The vacuum tank ensures safe pickup in the event of a sudden power break to the vacuum pump.
• Acoustic and visual alarm system powered by a rechargeable 12V Li-on battery.
• Slide valve with ON/OFF position for attaching and releasing of material.

Specifications

• Battery information for the device

Code battery	GBA 12V 2.0Ah Bosch
Type battery	Lithium-ION
Voltage	12V
Current	2.0Ah
Quantity	1
Continuous operation time with mode-saving pressure	2 hours
Working time with mode saving pressure	6 hours
Continuous operation time with mode audio alarm only	120 hours
Working time with mode audio alarm only	360 hours

• Battery charger

Code battery	GAL 12V-40 Bosch
Input supply voltage	220-240VAC
Output voltage	12V
Output current	4.0Ah
Quantity	1
Full charger time	0.5 hour
Weight	460 gram

• Compressed air requirement

Air consumption	180 liters/minute
Supply air pressure	5 bars (72 psi)
